    SKS NEMEF 1200 set

    Article number 406
    In stock
    EAN-number 7436914928971
    7 First Guard 4 4 3 3 6 6 9 9 1 1 4 4 Center 9 9 2 2 8 8 9 9 7 7 1 1 End Guard
    69,99 Included 21% VAT 57,84excl. VAT
    Description
    Upselling
    Attachments
    Tell a friend

    Description of SKS NEMEF 1200 set:

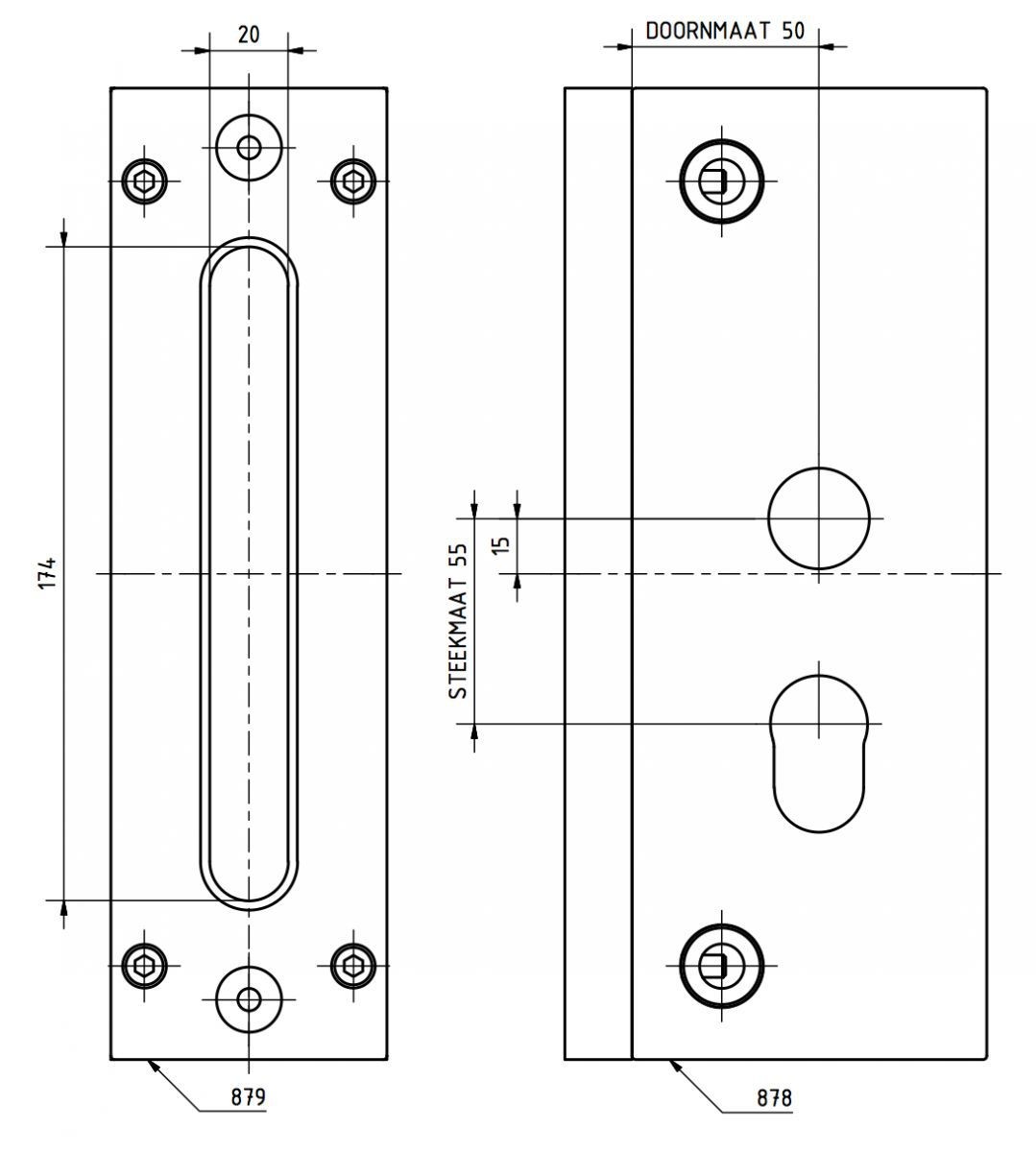

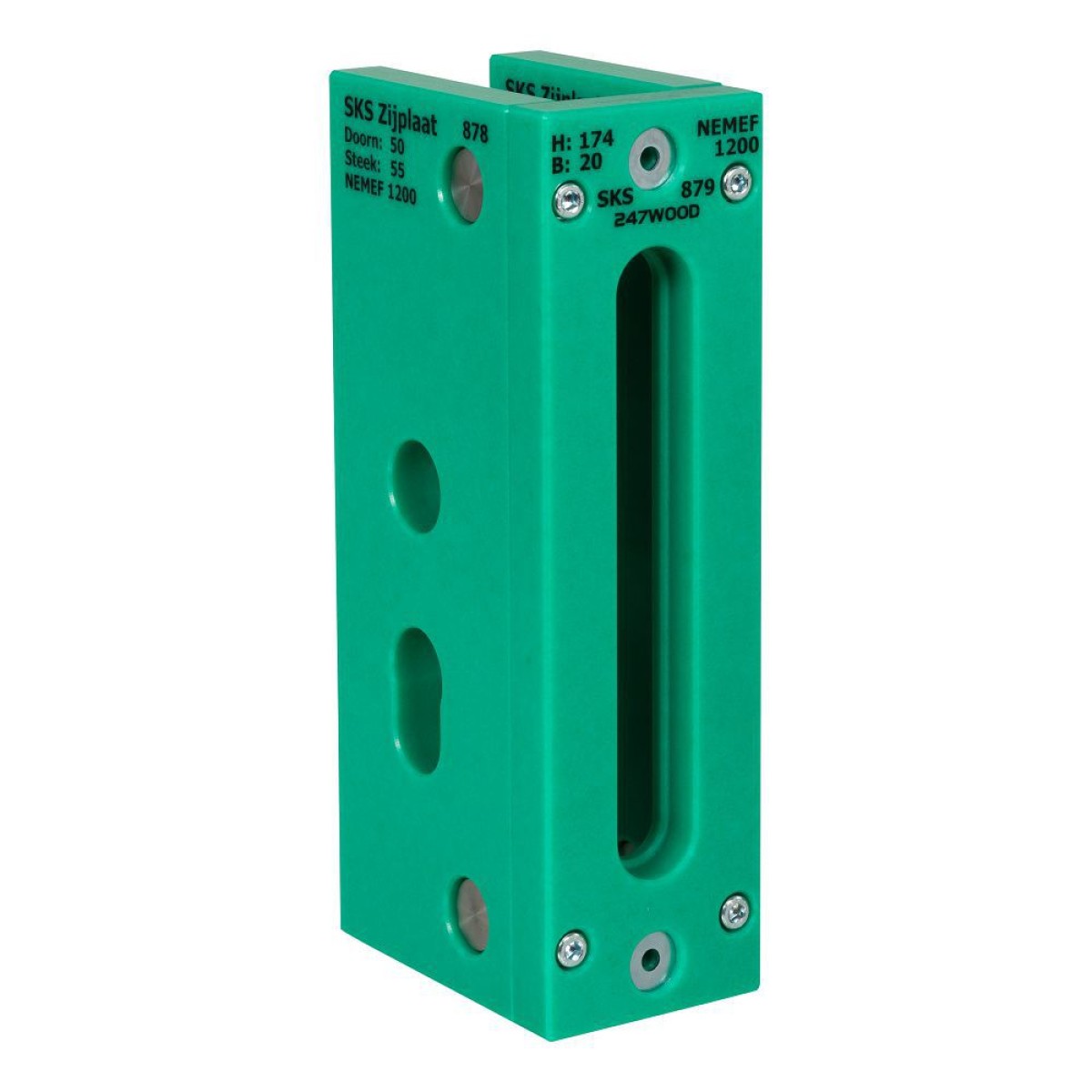

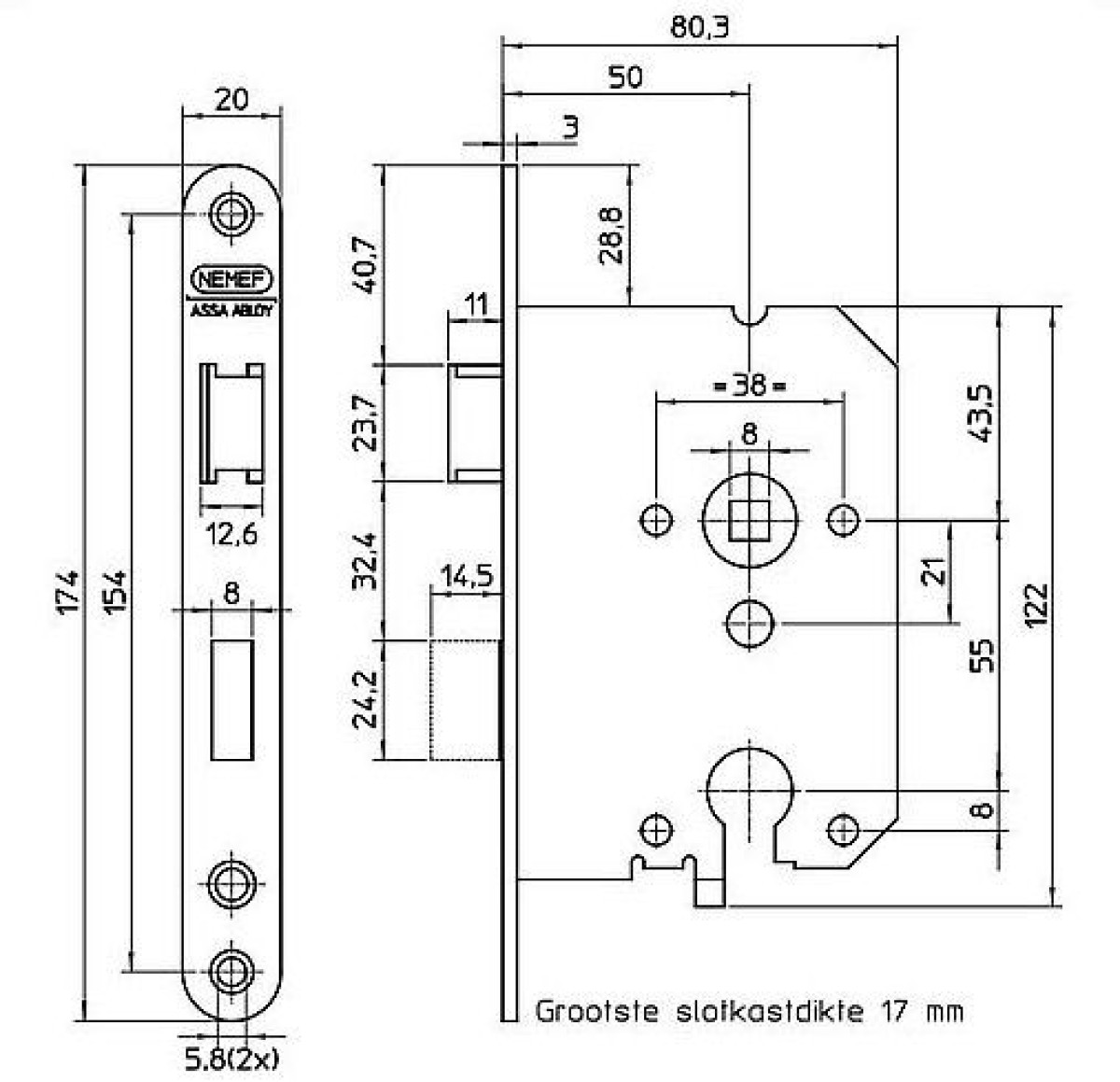

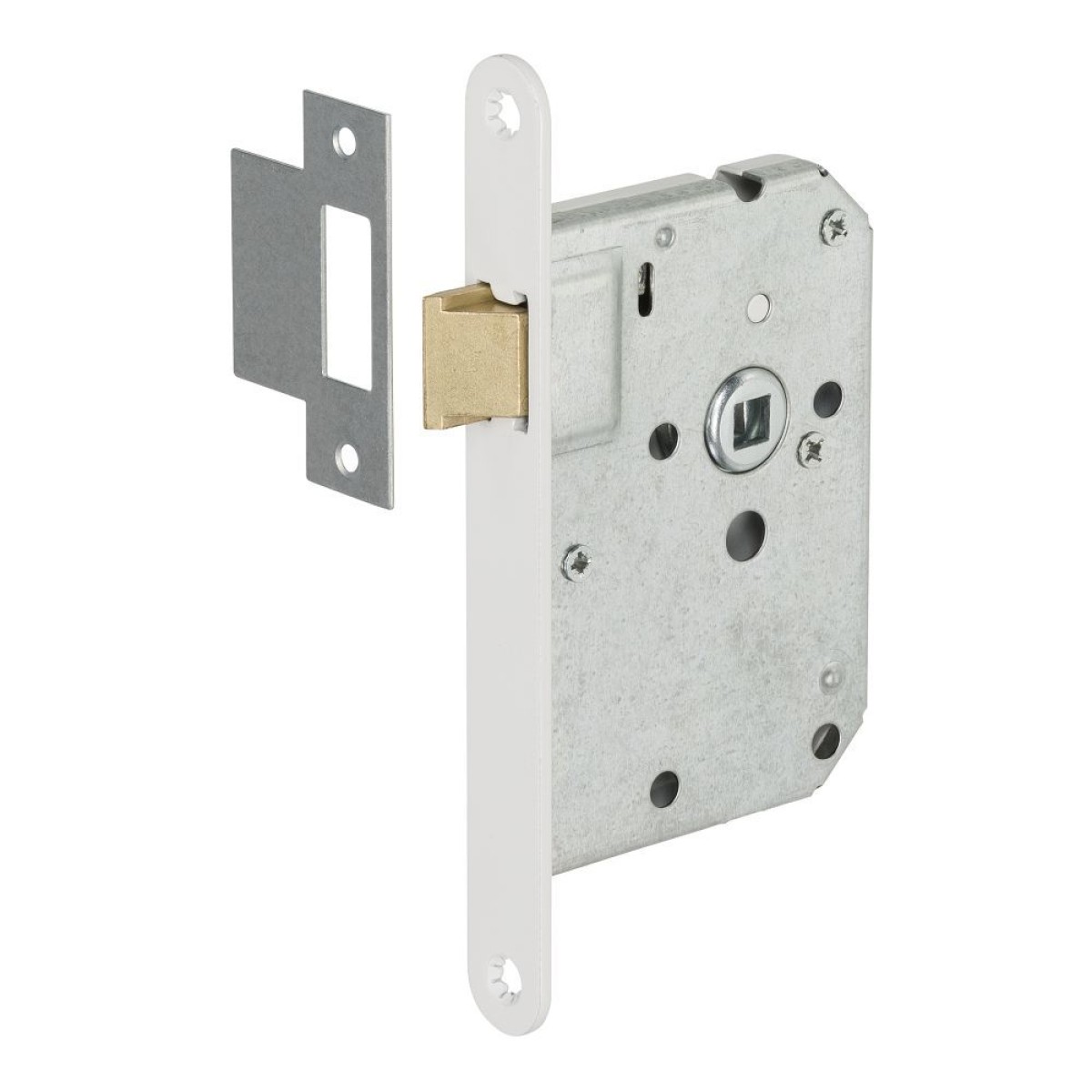

    With this milling template you can easily mill the front plate, stool and cylinder holes of the most common mortise locks from the NEMEF 1200 series. The cassete is fully CNC machined and made of a very durable technical plastic. For correct use of the milling jigs, you must equip the router with a 24 mm Guide Bush and an 18 mm Router Bit.

    Component properties:

    • Size of front plate 174x20

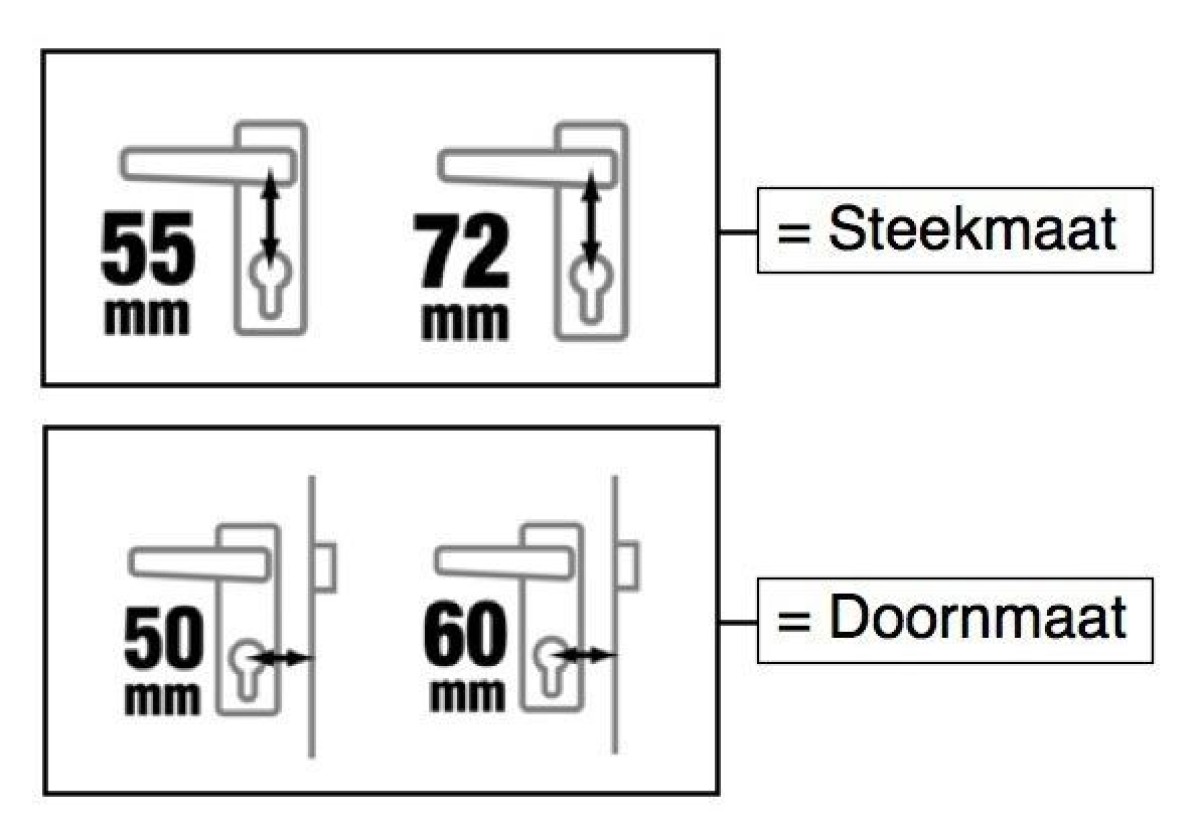

    • Mandrel 50 mm
    • Pitch size 55 mm
    • Door thickness 38 to 43 mm
    • Brand series NEMEF 1200
    • Guide Bush 24 mm
    • Router Bit 18 mm
    • 100% made in Holland product

    Video:

    3569_20170216113508_406 Freesmal SKS 1200 set.pdf
