    SKS NEMEF 600 set

    Article number 920
    In stock
    69,99 Included 21% VAT 57,84excl. VAT
    Description
    Upselling
    Attachments
    Tell a friend

    Description of SKS NEMEF 600 set:

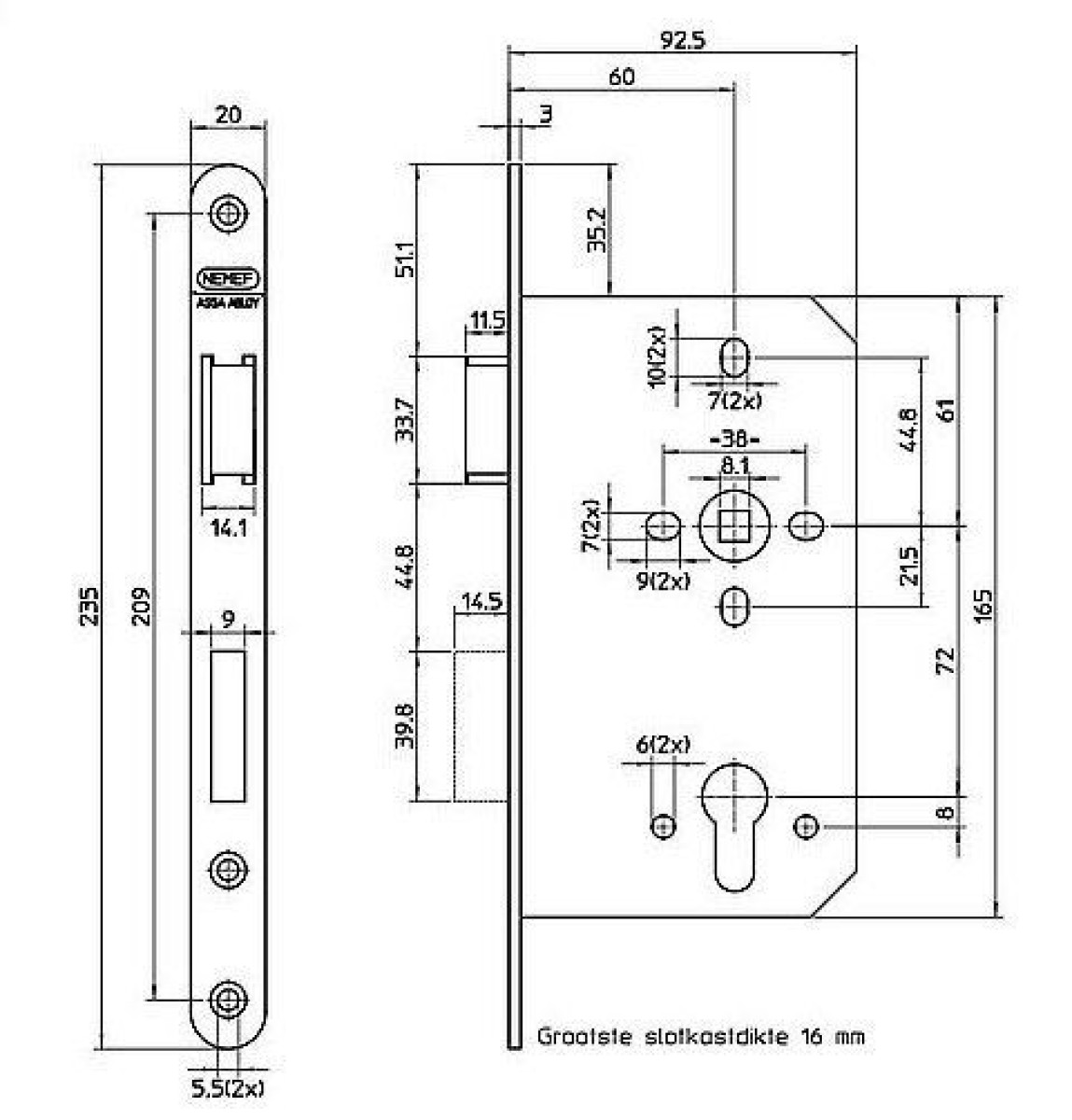

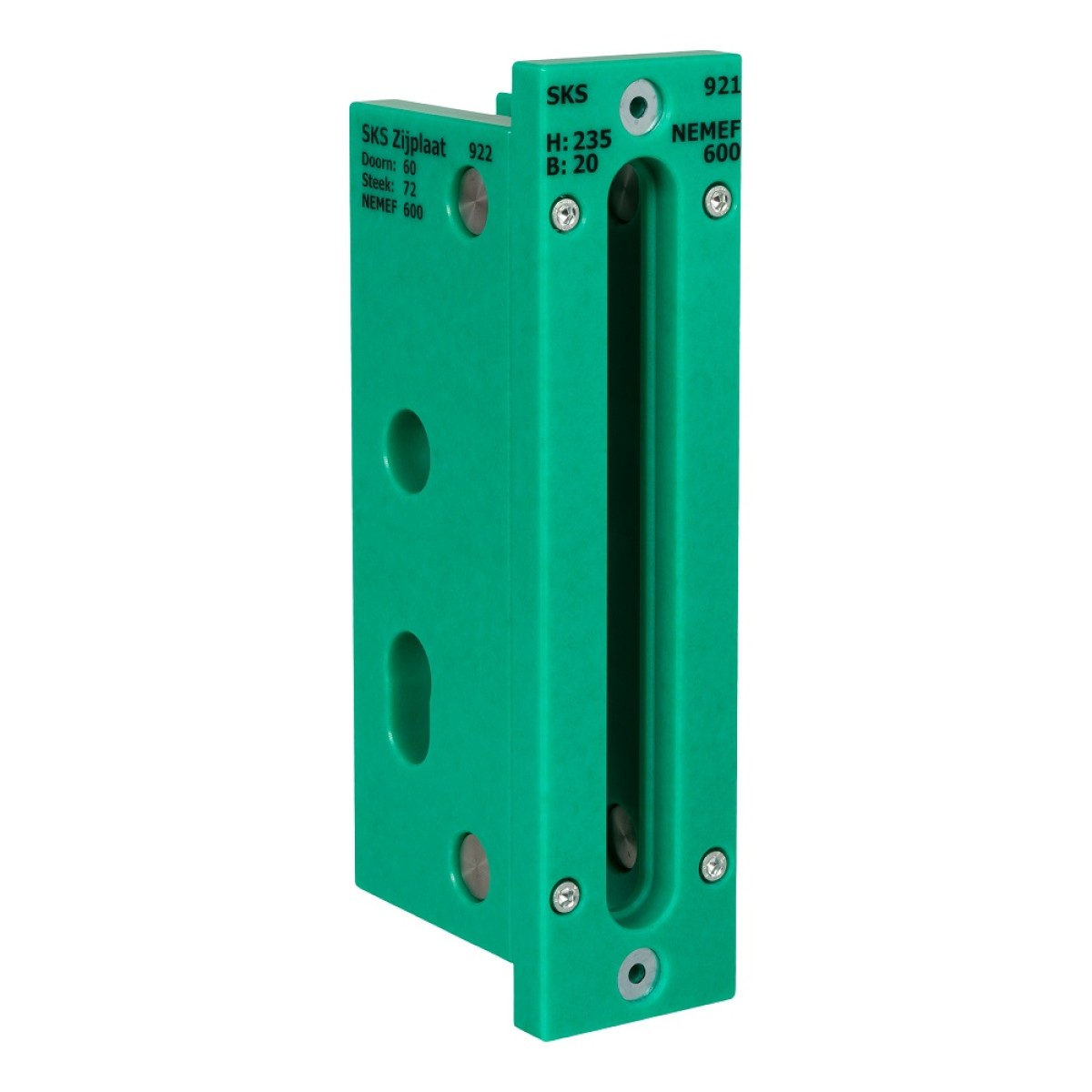

    With this milling template you can easily mill the front plate, stool and cylinder holes of the most common mortise locks from the NEMEF 600 series with a front plate size of 235 x 20 millimeters. The cassete is fully CNC machined and made of a very durable technical plastic. For correct use of the milling jigs, you must equip the router with a 24 mm Guide Bush  and an 18 mm Router Bit.

    Component properties:

    • Dimensions front plate 235x20
    • Mandrel size 60 mm
    • Pitch size 72 mm
    • Door thickness 38 to 43 mm
    • Brand series NEMEF 600
    • Guide Bush 24 mm
    • Router Bit 18 mm
    • 100% made in Holland product

    Video:

    3568_20170216113248_920 Freesmal SKS 600 set.pdf
