Description:

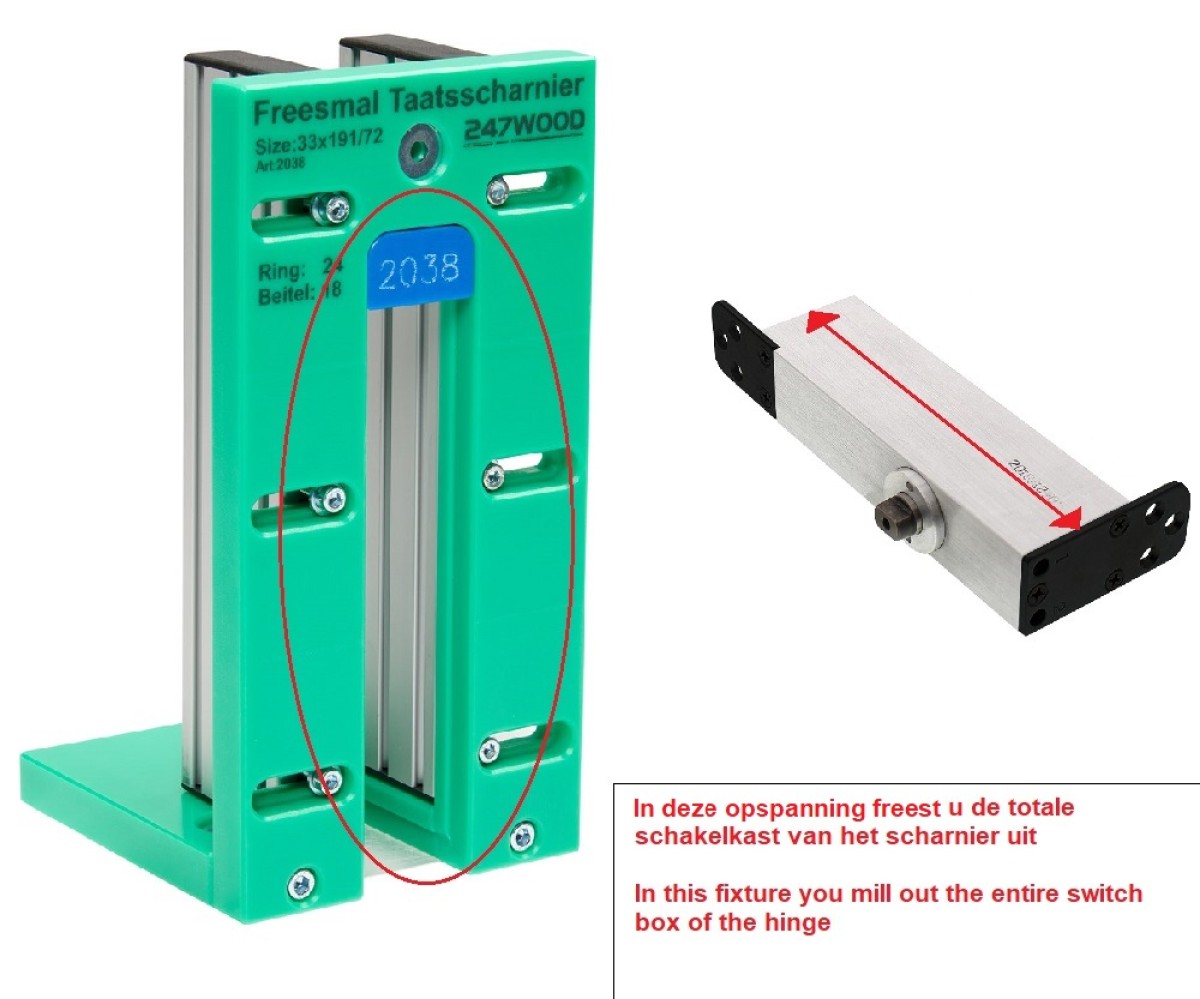

A pivot door hinge or pivot hinge offers the possibility to rotate a pivot door around its vertical axis. With this pivot pivot milling template you can easily perform all facets of the milling work. The milling jig is supplied with L-Boxx and custom inlay.

Please note that this milling template is only applicable to Intersteel pivot hinges, or pivot hinges that fall within the same size.

Component properties:

• Applicable to door thicknesses from 38mm to 90mm
• Supplied in L-boxx 136
• To be used with copy ring 24mm and router bit 18mm
